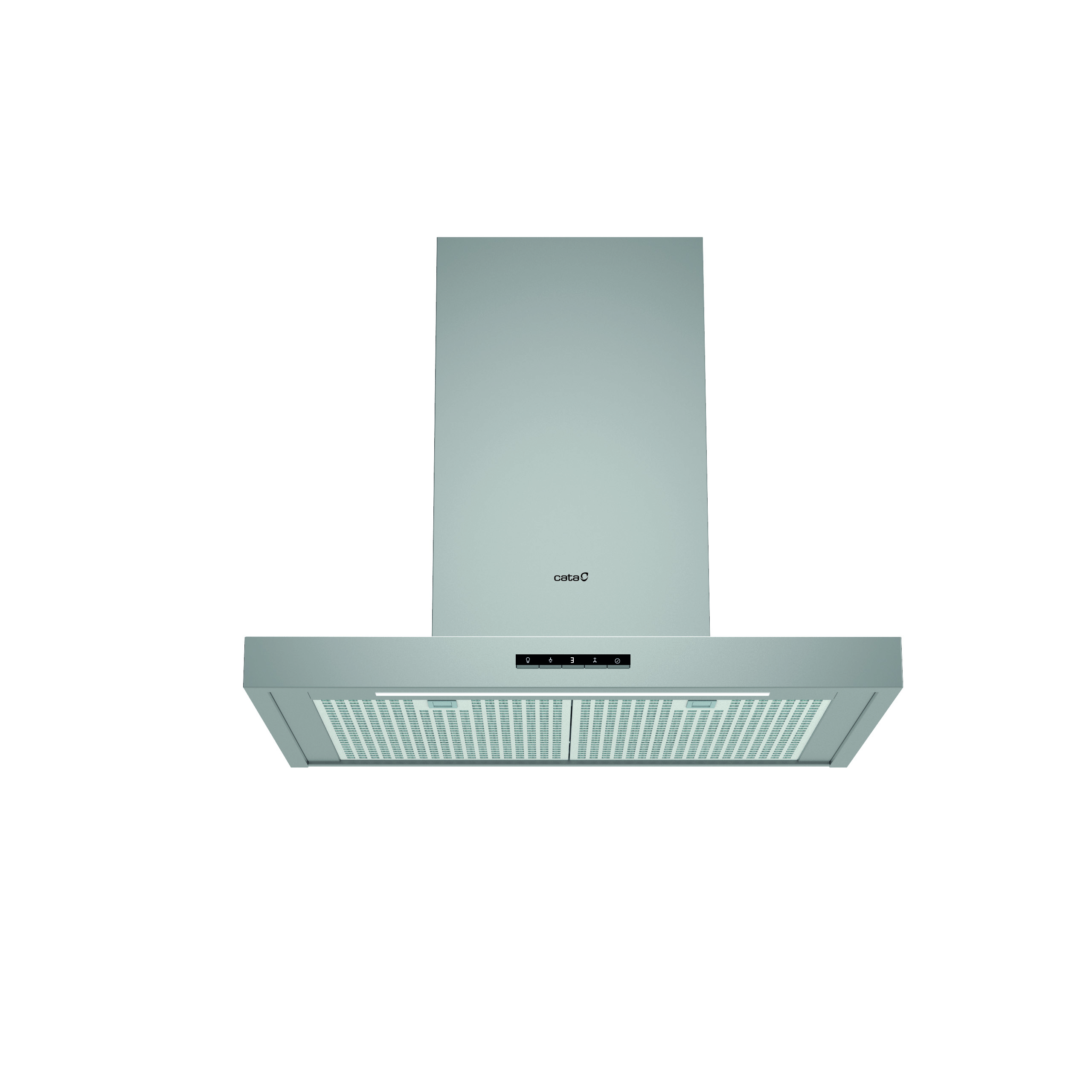

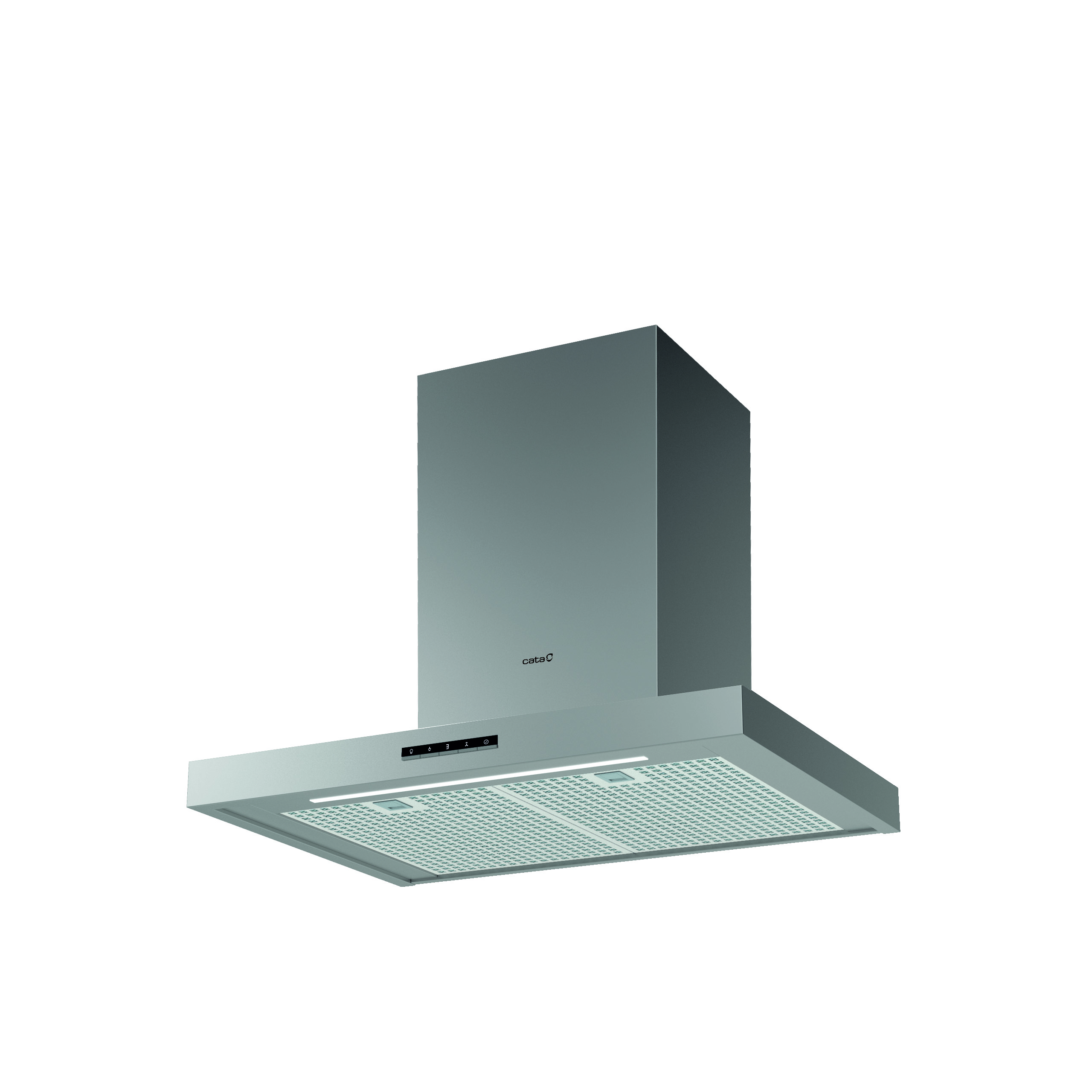

LEGEND 7010 X
Cod. 02021308
EAN 8422248110044
Product specifications
GENERAL INFORMATION
EAN/UPC
8422248110044
Subfamily
Box
Product sheet according to directives EU65/2014 - EN61591, EN60704-2-13, EN50564
AEC (Annual energy consumption) (kWh/year)
24,5
EEI class (energy efficiency class)
A+
FDE (fluid dynamic efficiency)
37
FDE class (fluid dynamic efficiency class)
A
LE (light efficiency) (lux/W)
17
LE class (light efficiency class)
C
GFE (grease filtering efficiency)
76,8
GFE class (grease filtering efficiency class)
C
Airflow in normal mode MIN (m3/h)
278,6
Airflow in normal mode MAX (m3/h)
550,9
Airflow in boost mode MIN (m3/h)
760,9
Acoustic power in normal mode MIN (dB)
52
Acoustic power in normal mode MAX (dB)
64
Acoustic power boost mode (dB)
70
Po (energy consumption in off mode) (W)
0,44
Ps (energy consumption in standby mode) (W)
0,44
Integration directive EU 66/2014
ƒ (time increase factor)
0,7
EEI (Energy Efficiency Index)
39,6
QBEP (maximum efficiency at air flow point) (m3/h)
316,9
PBEP (maximum efficiency at pressure point) (Pa)
330
WBEP (power consumption at maximum efficiency) (W)
78,6
WL (nominal power lighting system) (W)
6
EMIDDLE (Average illuminance on the cooking surface) (lux)
103

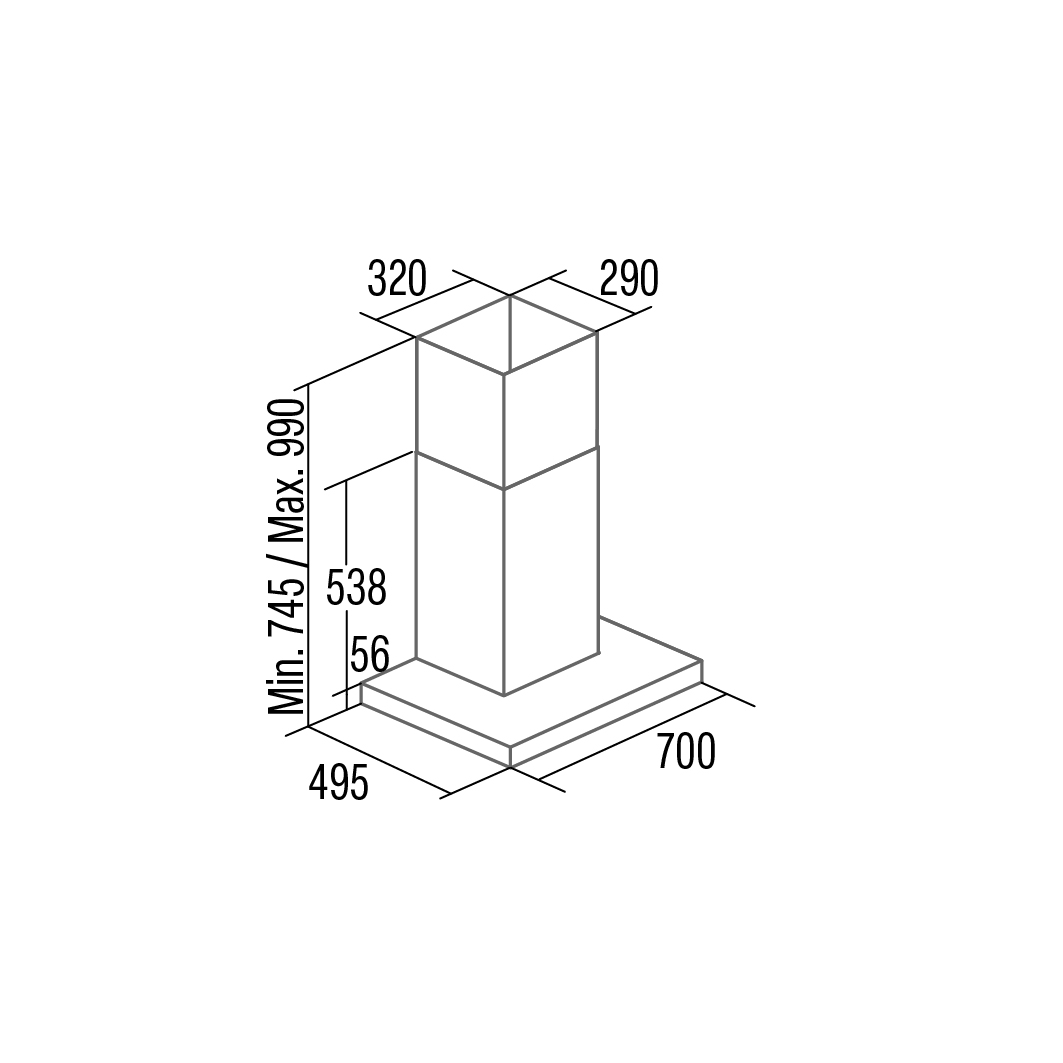

External Dimensions
Width (mm)
700
Depth (mm)
495
Maximum total height (mm)
990
Minimum total height (mm)
745
Diamètre de sortie (mm)
150, 125
Characteristics
Motor quantity
1
Motor model
BT4DC
Filter technology
Aluminium mesh
Control technology
Electronic Soft Touch
Booster
√
Power levels
4
Filter saturation indicator
√
Charcoal filter replacement indicator
√
Dimmer function
√
Connectivity
√
Remote control
-
Display
Display_grafico
Lighting
Light model
SSLED BICOLOR
Ray technology
LED
Installation
Minimum distance to electric plate (mm)
650
Minimum distance to gas plate (mm)
650
Recirculation option
-
Charcoal filter
-
Back draught shutter
No
Inner shield
-
Electric connection
Nominal voltage (V)
220-240
Nominal frequency (Hz)
50
Nominal input power (W)
141
Electric shock protection
Class I
Power cord length (m)
0,7
Plug type
No plug
Accessories
Upper decorative duct extension
02861301
White decorative duct
-
Black decorative duct
-
Island tube booster
-
Back draught shutter
02832004
Activated charcoal filter
02859318
Noiseless flexible duct
02893002
