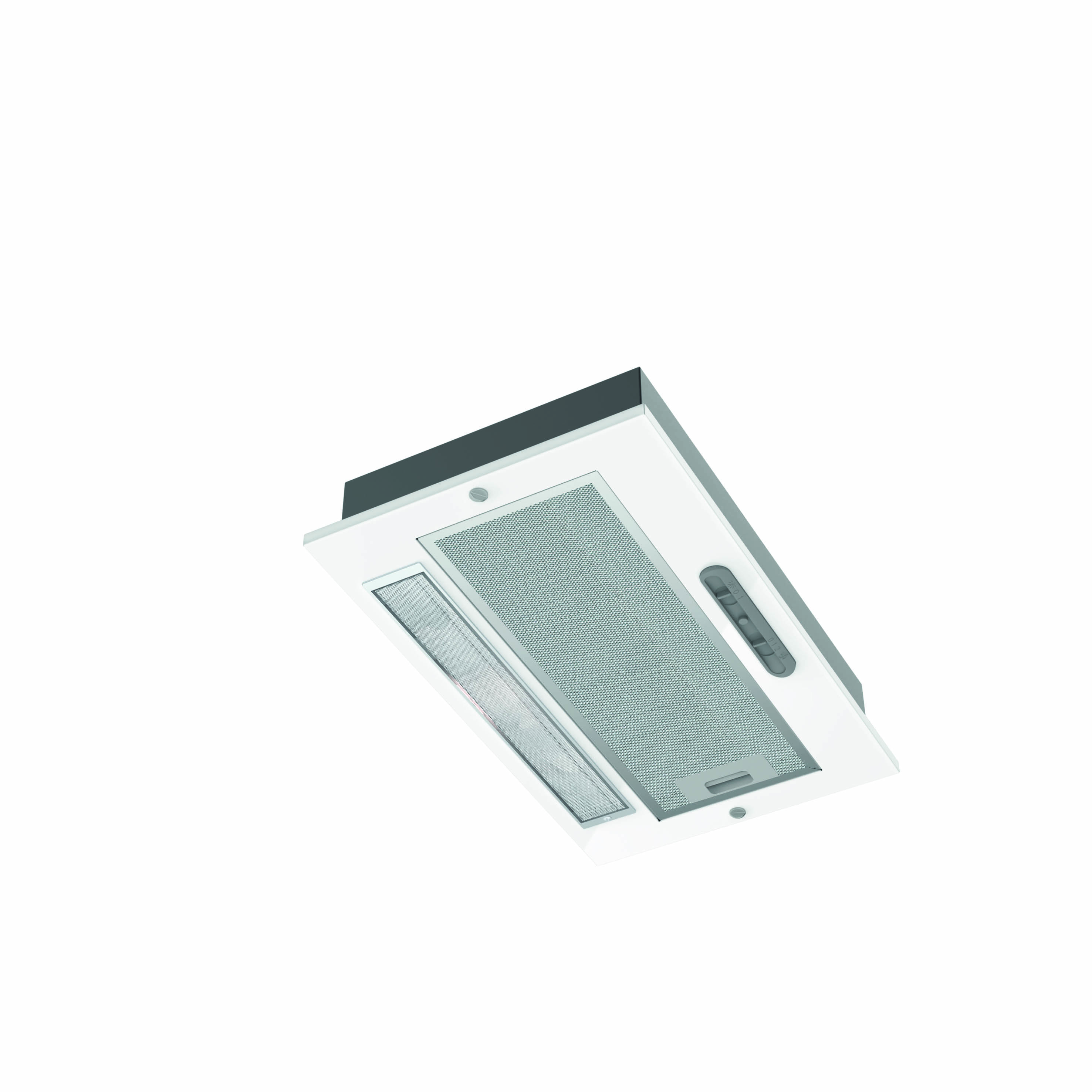

GK 4500 WH
Cod. 02039007
EAN 8422248357142
Product specifications
GENERAL INFORMATION
EAN/UPC
8422248357142
Subfamily
Insert
Product sheet according to directives EU65/2014 - EN61591, EN60704-2-13, EN50564
AEC (Annual energy consumption) (kWh/year)
29,7
EEI class (energy efficiency class)
B
FDE (fluid dynamic efficiency)
19,3
FDE class (fluid dynamic efficiency class)
C
LE (light efficiency) (lux/W)
15,5
LE class (light efficiency class)
D
GFE (grease filtering efficiency)
63
GFE class (grease filtering efficiency class)
E
Airflow in normal mode MIN (m3/h)
190
Airflow in normal mode MAX (m3/h)
360
Acoustic power in normal mode MIN (dB)
56
Acoustic power in normal mode MAX (dB)
67
Po (energy consumption in off mode) (W)
0
Ps (energy consumption in standby mode) (W)
0
Integration directive EU 66/2014
ƒ (time increase factor)
1,3
EEI (Energy Efficiency Index)
60,7
QBEP (maximum efficiency at air flow point) (m3/h)
199,7
PBEP (maximum efficiency at pressure point) (Pa)
202
WBEP (power consumption at maximum efficiency) (W)
58
WL (nominal power lighting system) (W)
3
EMIDDLE (Average illuminance on the cooking surface) (lux)
46,5
External Dimensions
Width (mm)
510
Depth (mm)
302
Maximum total height (mm)
170
Minimum total height (mm)
170
Diamètre de sortie (mm)
120
Characteristics
Motor quantity
1
Motor model
K11 360
Maximum pressure (Pa)
252
Filter technology
Aluminium mesh
Control technology
Mechanical slider
Booster
-
Power levels
2
Timer
-
Filter saturation indicator
-
Charcoal filter replacement indicator
-
Dimmer function
-
Connectivity
-
Remote control
-
Display
-
Lighting
Light model
LED E-14
Ray technology
LED
Installation
Minimum distance to electric plate (mm)
550
Minimum distance to gas plate (mm)
650
Recirculation option
-
Charcoal filter
-
Back draught shutter
-
Inner shield
-
Electric connection
Nominal voltage (V)
220-240
Nominal frequency (Hz)
50
Nominal input power (W)
93
Electric shock protection
Class II
Plug type
No plug
Accessories
Upper decorative duct extension
No
White decorative duct
No
Black decorative duct
No
Island tube booster
No
Back draught shutter
'02849003
MAX PRO Metal filter
No
Activated charcoal filter
'02859489
Noiseless flexible duct
No
Recirculation kit
No
