CAMPANA, HESTIA 600 GBK
Cod. 02012610
EAN 8422248360395
Product specifications
GENERAL INFORMATION
EAN/UPC
8422248360395
Subfamily
Angle Glass
Product sheet according to directives EU65/2014 - EN61591, EN60704-2-13, EN50564
AEC (Annual energy consumption) (kWh/year)
31,8
EEI class (energy efficiency class)
B
FDE (fluid dynamic efficiency)
19,3
FDE class (fluid dynamic efficiency class)
C
LE (light efficiency) (lux/W)
82,6
LE class (light efficiency class)
A
GFE (grease filtering efficiency)
62,5
GFE class (grease filtering efficiency class)
E
Airflow in normal mode MIN (m3/h)
191,7
Airflow in normal mode MAX (m3/h)
357,7
Acoustic power in normal mode MIN (dB)
51
Acoustic power in normal mode MAX (dB)
67
Po (energy consumption in off mode) (W)
0
Integration directive EU 66/2014
ƒ (time increase factor)
1,3
EEI (Energy Efficiency Index)
62,2
QBEP (maximum efficiency at air flow point) (m3/h)
230,7
PBEP (maximum efficiency at pressure point) (Pa)
186
WBEP (power consumption at maximum efficiency) (W)
61,5
WL (nominal power lighting system) (W)
3,5
EMIDDLE (Average illuminance on the cooking surface) (lux)
289

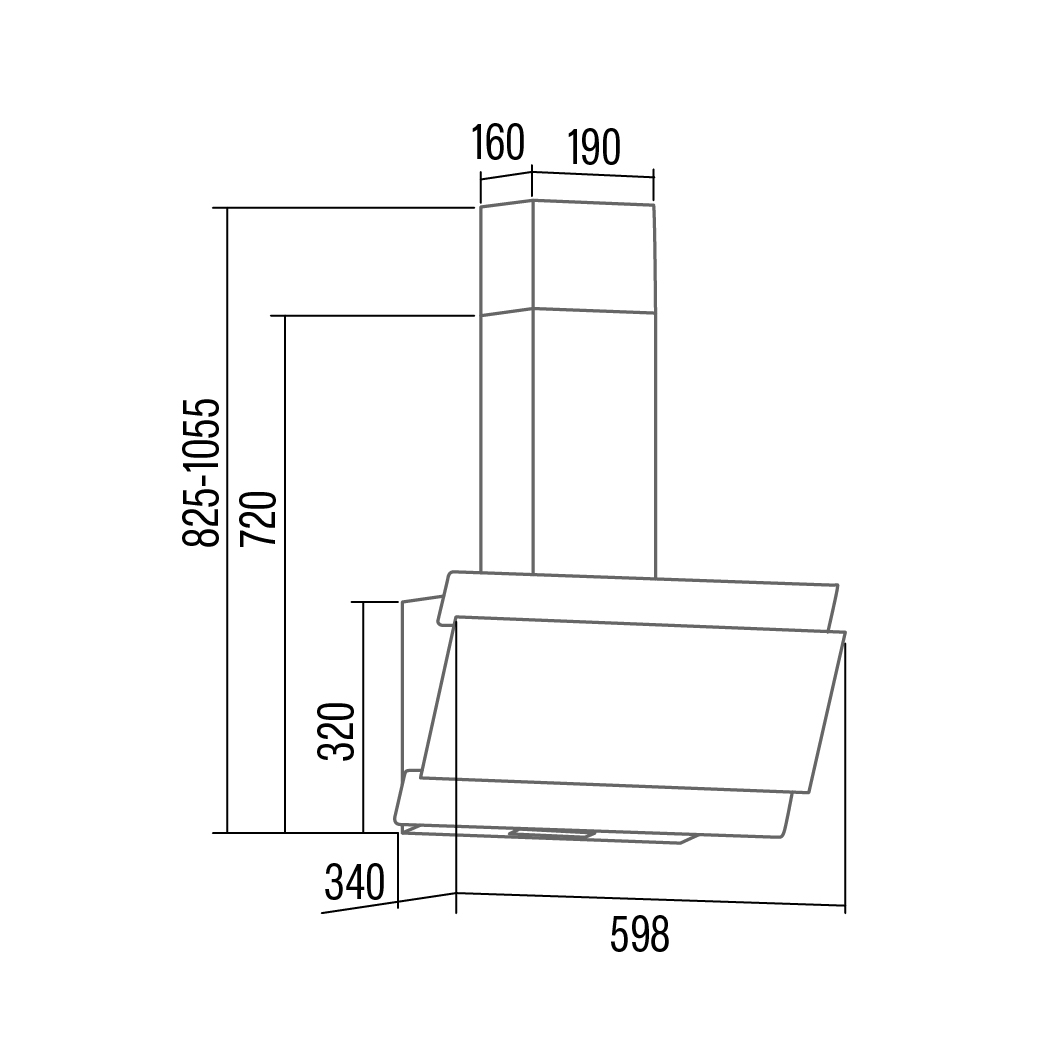

External Dimensions
Diamètre de sortie (mm)
120
Characteristics
Motor quantity
1
Motor model
EY450 400 A
Control technology
Mechanical push button
Booster
√
Timer
-
Electric connection
Nominal voltage (V)
220-240
Nominal frequency (Hz)
50/60
Electric shock protection
Class II
