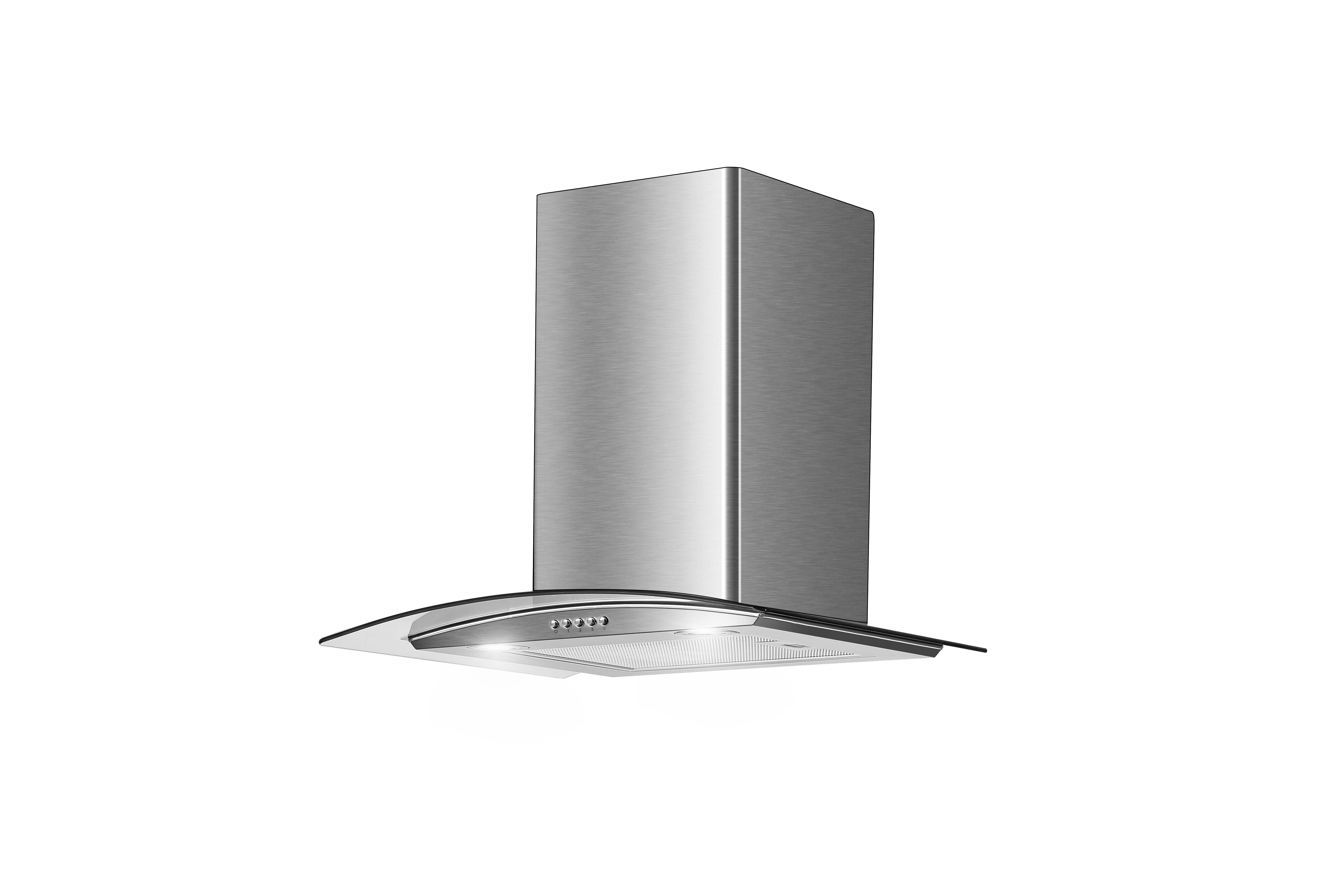

CG5-T600 X
Cod. 02005299
EAN 8422248097413
INFORMACIÓN GENERAL
EAN/UPC
8422248097413
Subfamily
Curved Glass
Product fiche according to directives EU65/2014 - EN61591, EN60704-2-13, EN50564
AEC (Energy consumption per year) (kWh/año)
46
EEI class (Energy efficiency class)
B
FDE (Fluid dynamic efficiency)
204
FDE class (Fluid dynamic efficiency class)
C
LE (Light efficiency) (lux/W)
4933
LE class (Light efficiency class)
A
GFE (Grease filtering efficiency)
7386
GFE Class (Grease filtering efficiency class)
D
Normal mode airflow MIN (m3/h)
3045
Normal mode airflow MAX (m3/h)
499
Normal mode acustic power MIN (dB)
435
Normal mode acustic power MAX (dB)
676
Po (Off-mode power consumption) (W)
0
Integration directive EU 66/2014
ƒ (Factor Increase in the time)
127
EEI (Energy efficiency Index)
667
QBEP (Maximum airflow point efficiency) (m3/h)
260
PBEP (Maximum pressure point efficiency) (Pa)
270
WBEP (Electrical power consumption at maximum efficiency) (W)
957
WL (Rated power lighting system) (W)
3
EMIDDLE (Average illuminance on the cooking surface) (lux)
148
External Dimensions
Width (mm)
600
Depth (mm)
470
Maximum Total Height (mm)
776
Minimum Total Height (mm)
426
Outlet Diameter (mm)
150
Characteristics
Motor Quantity
1
Motor Model
TT500
Maximum Pressure (Pa)
430
Filter Technology
Aluminium mesh
Control Tecnology
Mechanical push button
Booster
-
Power levels
3
Timer
-
Filter Saturation Indicator
-
Charcoal Filter Change Indicator
-
Dimmer Function
-
Connectivity
No
Remote control
-
Display
-
Lighting
Light Model
ECOLED
Lightning Technology
LED
Installation
Minimum distance to an electric cooktop (mm)
650
Minimum distance to a gas cooktop (mm)
650
Recirculation Option
√
Charcoal Filter
-
Back Draught Shutter
Included
Inner shield
-
Electric Connection
Rated voltage (V)
220-240
Rated frequency (Hz)
50/60
Rated power input (W)
123
Protection against electric shock
Class I
Plug type
Type F
Accessories
Active Charcoal Filter
02859492
Noiseless Flexible Duct
02893002
